Charging Pile

Application scheme

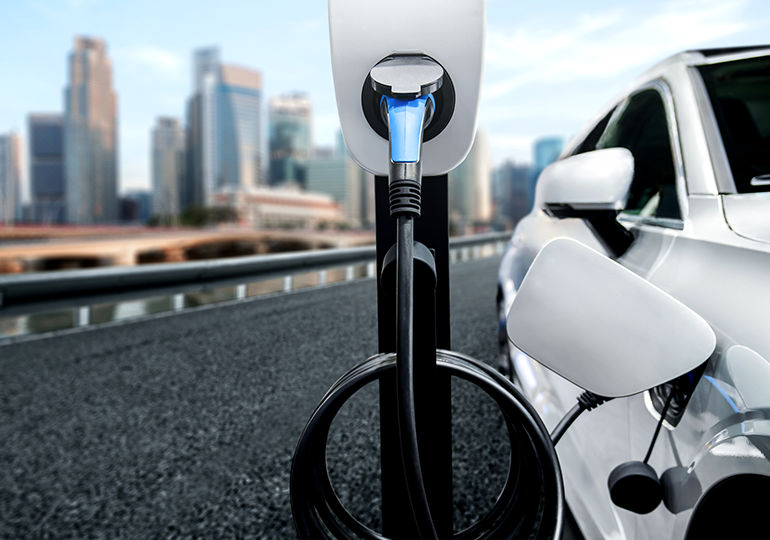

Charging pile refers to the charging device that provides energy supplement for electric vehicles, its function is similar to the fuel dispenser in the gas station, can be fixed on the ground or wall, installed in public buildings (public buildings, shopping malls, public parking lots, etc.) and residential parking lots or charging stations, and can charge various models of electric vehicles according to different voltage levels.

Application Details

X-IPM introduces 1KW bidirectional digital control inverter with small size and high power density, Size: 140mm * 100mm * 40mm, Weight: 600g

230V System, AC to DC power 1000W, DC to AC power 1000W

110V System, AC to DC power 600W, DC to AC power 600W

PV Power: 100~200W

The inverter adopts TI 's DSP as the digital power control chip, and the power device adopts MOSFET + X-IPM SiC diode

The charging adopts high-efficient PFC + LLC + synchronous rectification technology.

Inverter adopts high efficiency DC-DC resonance + Inverter output with synchronous generator characteristics.

Charge Efficiency: 94%, Discharging Efficiency: 93%

AC Side Support: 90--160 165--264VAC

DC Side Support: 10V--80VDC

Fanless, Natural Cooling

It supports multiple charging modes such as EV, PV, PD and VAC.

It supports off-line multiple equipment in parallel

Application Parameters

XPC1KGE Character

Parameter

Brand

110V System Charging Power

600W

—

230V System Charging Power

1000W

—

230V System Inverter Power

1000W

—

AC Side Support

90~160VAC 165~264VAC

—

Charging / Discharging Efficiency

94% / 93%

—

Charging Topology

PFC+LLC+SR

—

DC Side Support

10V~80VDC

—

Inverter Main Controlling

DSP

Inverter Topology

DC-DC Resonance

—

PV Power

24V/240W

—

Power Device

MOS + SiC-SBD

X-IPM xSiC

Size

140*100*35 mm

—
