Industrial / Plant Lighting

Application scheme

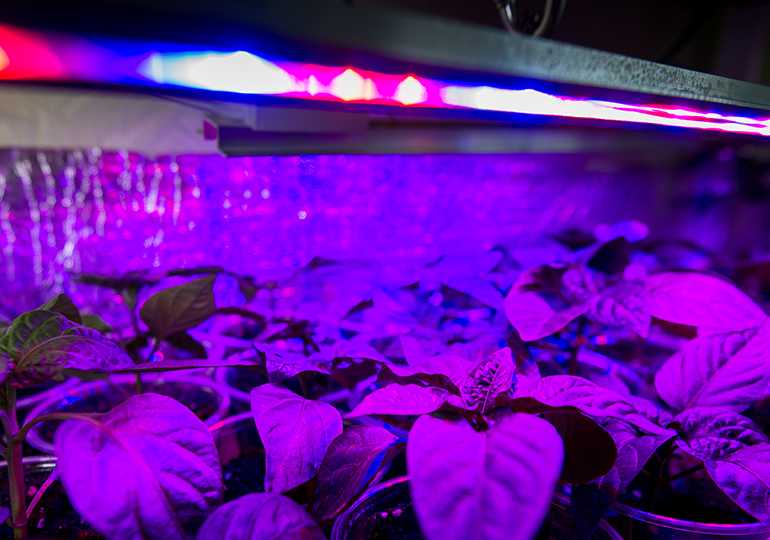

LED drive power supply is a power converter that converts the power supply into a specific voltage and current to drive LED light. Usually, the input of LED drive power includes high-voltage power frequency AC ( ie, mains ), low-voltage DC, high-voltage DC, low-voltage high-frequency AC ( such as the output of electronic transformer ), etc. The output of the LED drive power supply is mostly a constant current source that can change the voltage with the change of the LED forward voltage drop.。

Application Details

X-IPM introduces 1KW bidirectional digital control inverter with small size and high power density, Size: 140mm * 100mm * 40mm, Weight: 600g

230V System, AC to DC power 1000W, DC to AC power 1000W

110V System, AC to DC power 600W, DC to AC power 600W

PV Power: 100~200W

The inverter adopts TI 's DSP as the digital power control chip, and the power device adopts MOSFET + X-IPM SiC diode

The charging adopts high-efficient PFC + LLC + synchronous rectification technology.

Inverter adopts high efficiency DC-DC resonance + Inverter output with synchronous generator characteristics.

Charge Efficiency: 94%, Discharging Efficiency: 93%

AC Side Support: 90--160 165--264VAC

DC Side Support: 10V--80VDC

Fanless, Natural Cooling

It supports multiple charging modes such as EV, PV, PD and VAC.

It supports off-line multiple equipment in parallel

It supports off-line multiple equipment in parallel 2

Application Parameters

XPC1KGE Character

Parameter

Brand

110V System Charging Power

600W

—

230V System Charging Power

1000W

—

230V System Inverter Power

1000W

—

AC Side Support

90~160VAC 165~264VAC

—

Charging / Discharging Efficiency

94% / 93%

—

Charging Topology

PFC+LLC+SR

—

DC Side Support

10V~80VDC

—

Inverter Main Controlling

DSP

Inverter Topology

DC-DC Resonance

—

PV Power

24V/240W

—

Power Device

MOS + SiC-SBD

X-IPM xSiC

Size

140*100*35 mm

—
